This is a Loupedeck Live profile full of mappings for the Fenix A320 for MSFS. It uses Loupedeck hardware as MIDI inputs passed to Spad.next. Hopefully, Spad team will support Loupedeck Live so we can have a visual feedback about what are we changing on the cockpit
REQUIREMENTS
- Loupedeck Live
- Spad.next
You have to import both profiles (Loupedeck and Spad) to work as expected. The lp5 file should be imported into the Loupedeck Live software through the 'Import profile' option.
To import the Spad profile, just paste the .xml file into Spad profiles path (usually C:\Users\(your name)\Documents\SPAD.neXt\profiles) and activate it in the Spad.next software (second tab)
The mappings are divided into different pages regarding different systems.
NOTE: To change the page, press the numbers of the Loupedeck Live. If you do a double press, it will load the page and load the camera assigned to that page.

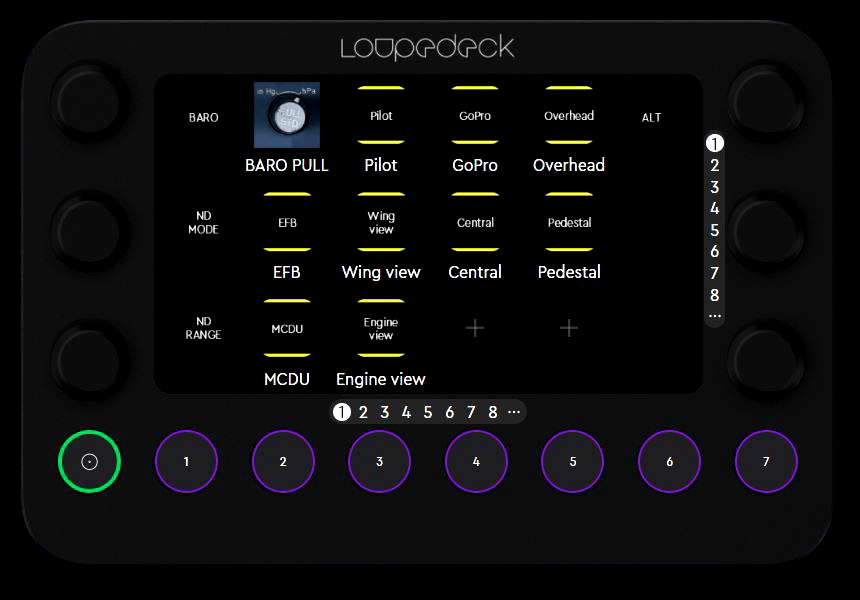

PAGE 1 (Views):
Views are using custom camera numbers (Alt + 0, Alt + 1, Alt + 2...), you may want to change the order of your cameras to match this profile, or change the displayed name in the buttons through the Loupedeck software.
(Optional) You can import my camera settings to have them working properly (to do this, just paste camera.cfg file into C:\Users\(your name)\AppData\Local\Packages\Microsoft.FlightSimulator_XXXXXX\LocalCache\SimObjects\Airplanes\fnx320

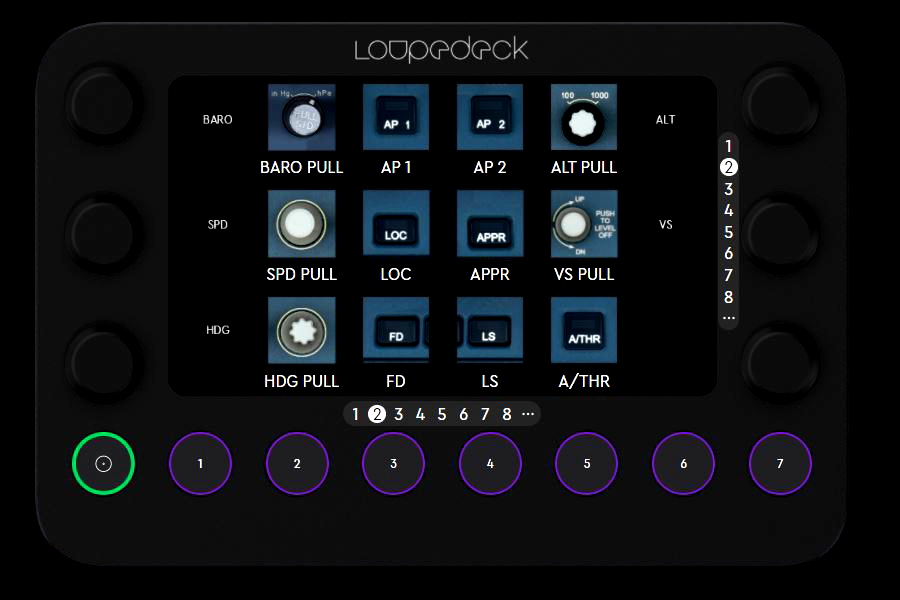

Page 2 (Autopilot):
Dials will change the FCU settings, the button next to the dial will change the modes to SELECTED and Pushing the Loupedeck knobs will return them to MANAGED.

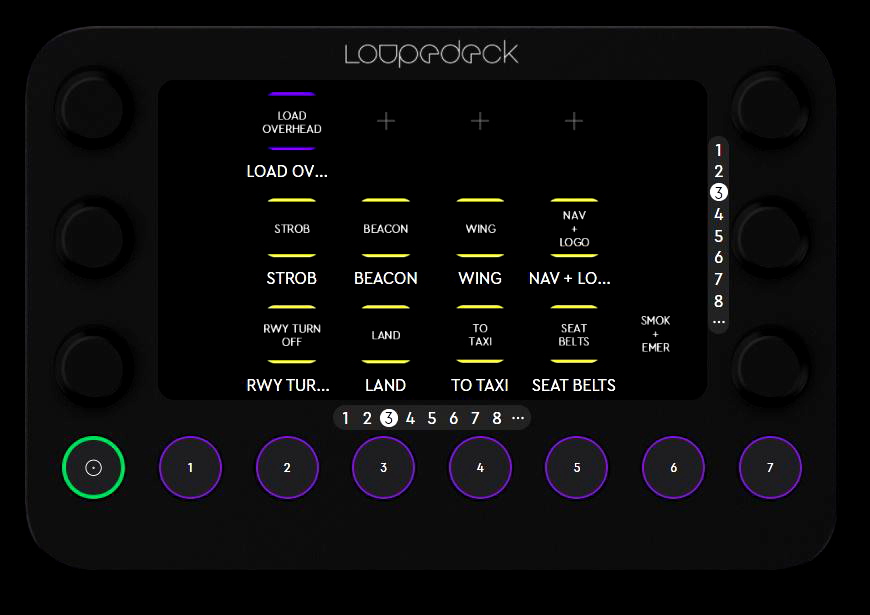

Page 3 (Lights)

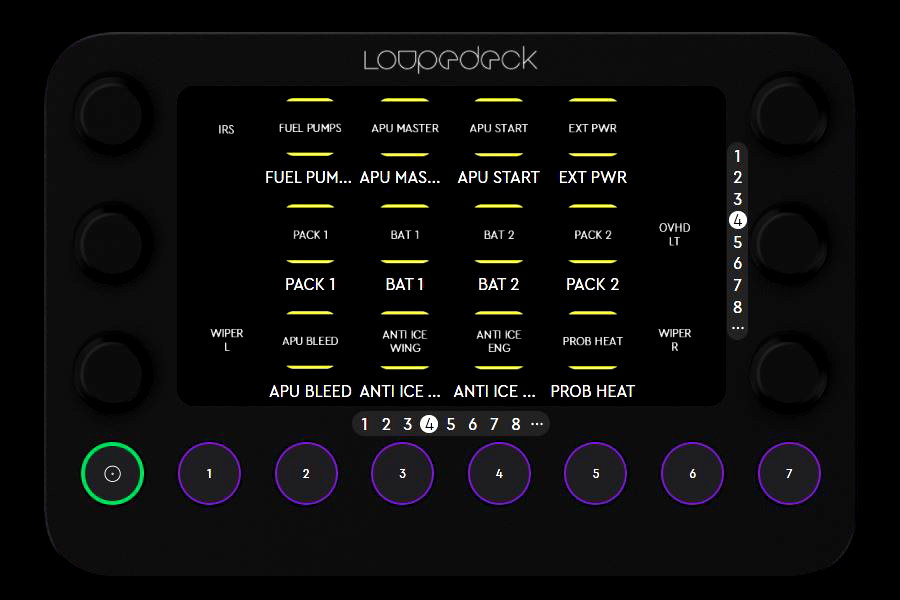

Page 4 (Overhead):
Pushing the OVHD LT dial will change your dome light setting

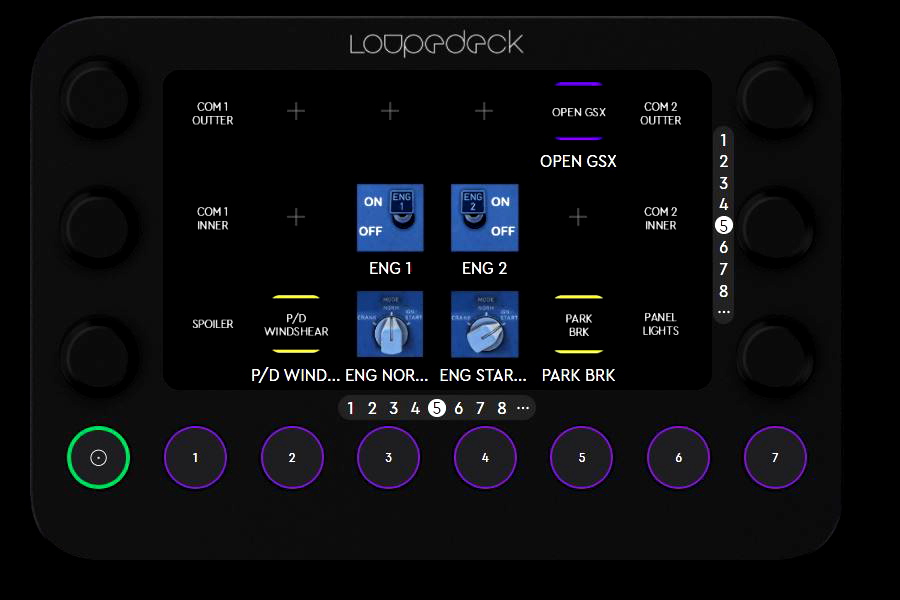

Page 5 (Pedestal and Radio + GSX):
COM dials will change your standby frequencies for COM1 and COM2. Push dial to change standby to active
SPOILER dial will change your ground spoiler setting. Pushing dial will arm/disarm spoilers
GSX page is using default shortcut (Ctrl + Shift + F12)

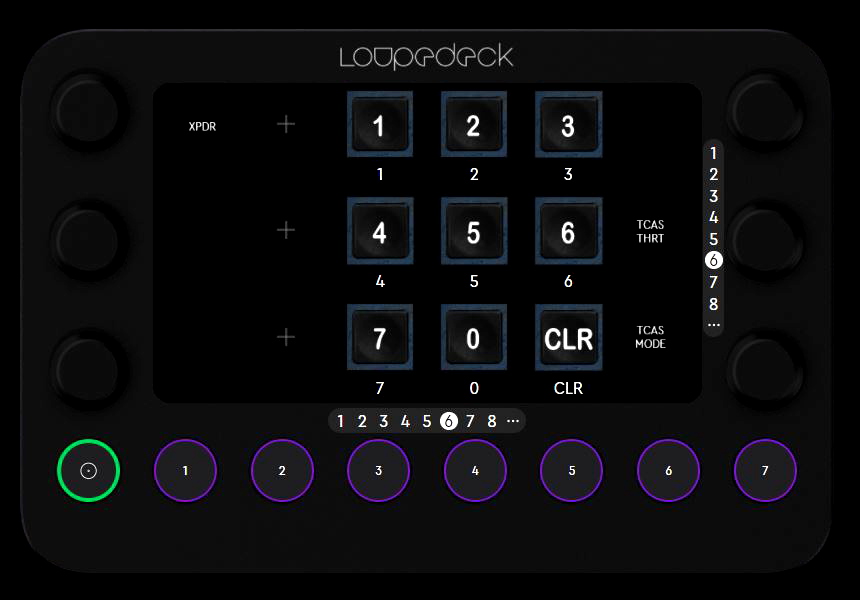

PAGE 6 (TRANSPONDER)

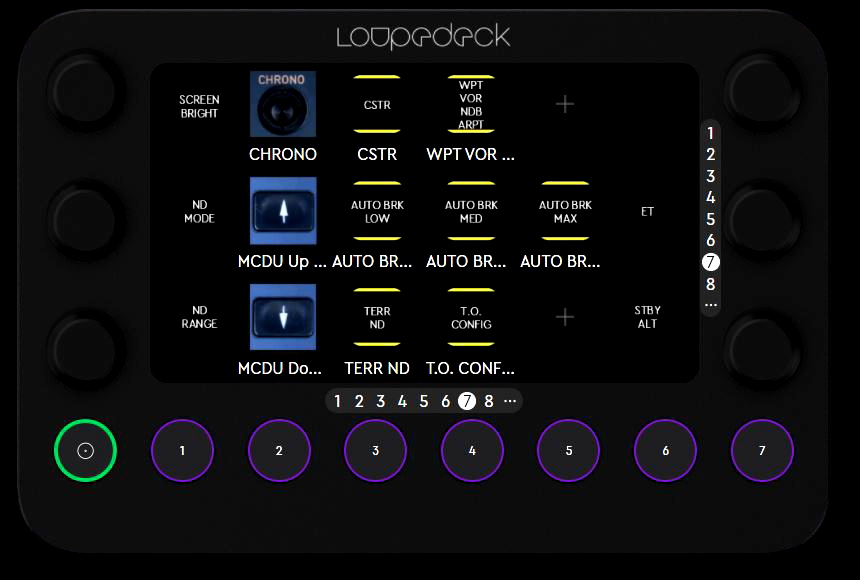

PAGE 7 (MAIN PANEL):
Up and down arrows are referring to the MCDU. They are intended to be used while using PLAN mode on the ND to iterate through the flightplan to check if everything is fine. Pushing the ET knob will reset your chrono

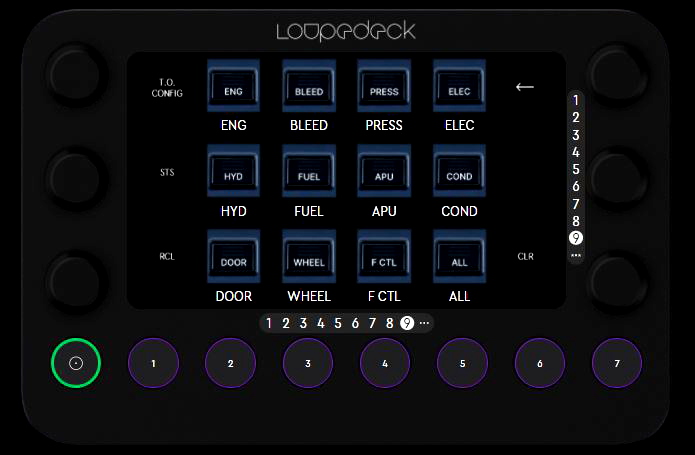

ECAM: This button will guide you to a new screen with all ECAM buttons
15 days ago
LionsMilk
2 months ago
2 months ago
kildos
gamani
Good stuff!
7 months ago
zingoman
Think this needs a massive update, many things don't work. Could be me but weird how some things work, but a lot don't!
8 months ago
Hi, could you say what things do not work for you so I can take a look? I use this every week and didn't notice any change at all
8 months ago
kildos
j4cko562
Absolute game changer! Its like going from a joystick to a yoke/throttle/rudder pedals setup. Now for the bad news, we'll be expecting one for the a310, longitude, cj4, tbm, etc. 😉
10 months ago
mstadros
Awesome Kildos, I love it! They're a few thing I can't get right. For instance the altitude switch between 1000s and 100s doesn't seem to work for me (S_FCU_ALTIDUDE) and Flight Director (FD) button won't respond. I'm a SPAD.neXt newbie. Some button events have warning triangles.
11 months ago
Thank you! And sorry, probably the icon is not clear, but the altitude knob is not to change between 100 and 1000 feet. The button performs a PULL on the altitude knob of the Aribus, causing the altitude to enter the OP CLB or OP DESC modes. This behaviour is the same for the SPD and HDG knobs. If you push the icons, you change the FCU to their SELECTED modes, and if you push the Loupedeck dials, you perform a PUSH to the FCU dials, causing the Airbus to change to MANAGED. I hope it's more clear now. If it is not, you can contact me on discord :)
Regarding the FD button, I don't know why it is not working for you: in Spad.next, the action for the button should be "increment S_FCU_EFIS1_FD by 2" (and the same for the EFIS2 if you want to perform the same action on the first officer side)
11 months ago
kildos
Acidstuff
Hi Kildos2119, its me and I like to let you know how fantasic this program is, great!
Just one question, you see achance to add Button LED color to see what will be active …
Thanks for this graet tool
12 months ago
Thank you! Currently It is not possible, but Spad.next dev team will add support for changing the buttons of the Loupedeck depending on Sim commands, just like they do for Streamdeck devices. Hopefully we can have that soon!
11 months ago
kildos
doormann
Nice work! Any chance you can do one for the A310?
1 years ago
Thanks! I will do it if I have some time...probably soon I will be releasing one for the recent Cirrus SF50 Vision Jet ;)
1 years ago
kildos
Joni500
Exellent Work
1 years ago
Thank you! I'm glad you like it :D
1 years ago
kildos
akisGR
